Eclipse™
Field Flow Fractionation system
Wyatt Technology’s 6th-generation Eclipse field-flow fractionation (FFF) system represents an entirely new level of FFF technology. It incorporates sophisticated controllers and sensors with built-in intelligence and an intuitive interface to ensure ease of use, reliability and repeatability, suitable for technicians and occasional users as well as expert scientists.
Why choose Wyatt's FFF solution?
Industry-leading Waters Arc HPLC front-end for maximum accuracy and reliability
System health indicators and troubleshooting guidance help ensure smooth runs
Compatible with most aqueous buffers and many organic solvents including THF and toluene
SEC switching option enables automated switching between FFF-MALS and SEC-MALS
Intelligent solvent management system with configurable recycling minimizes solvent consumption
Key Benefits of FFF
- Versatile Separation
High-resolution separations of macromolecules and nanoparticles from 1 nm - 1000 nm and beyond. - Gentle, Open-Channel Separation

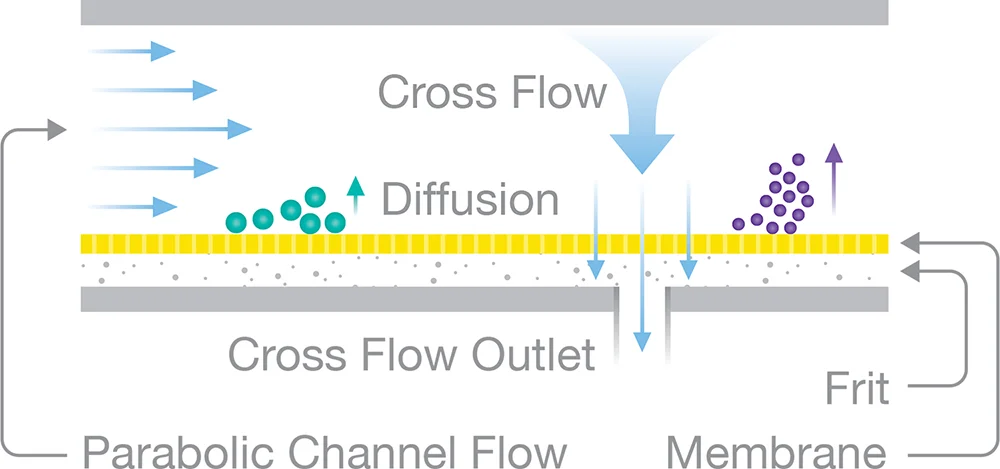

No stationary phase ensures minimal shear and surface interactions. - Adaptable Workflow
Choose channels for sample loads from nanograms to milligrams; program flow ratios for optimal resolution or size range. - Comprehensive Online Analysis
Effortless multi-detector integration such as MALS, DLS, UV, RI, FLD or ICP-MS. - Fraction Collection
Increase concentration up to 10x with dilution control module (DCM) and collect for further analysis on detectors such as TEM or CAD.
Example Applications

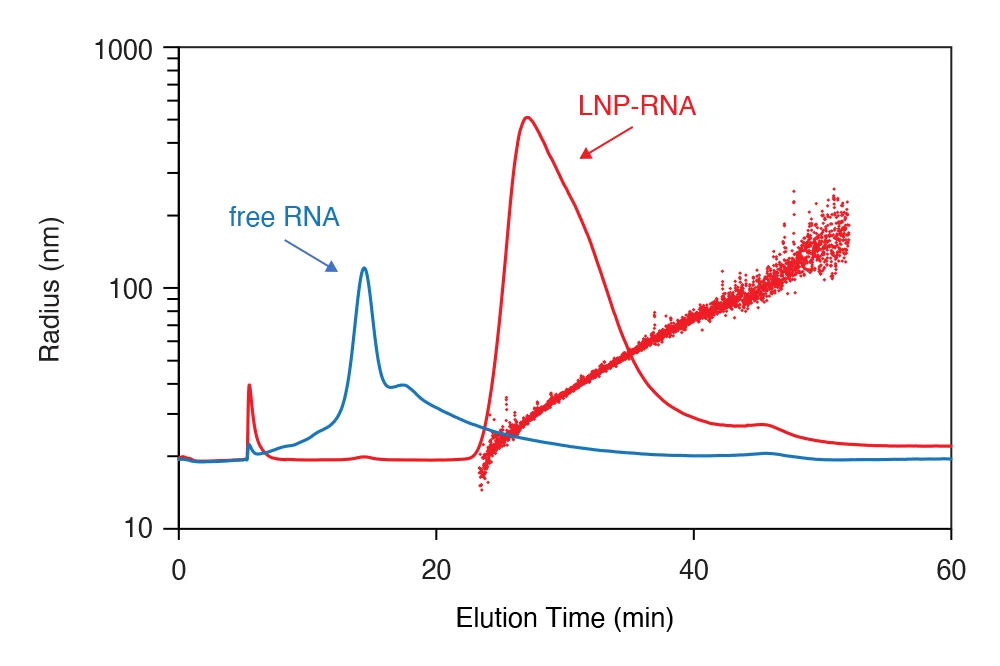

Lipid Nanoparticles

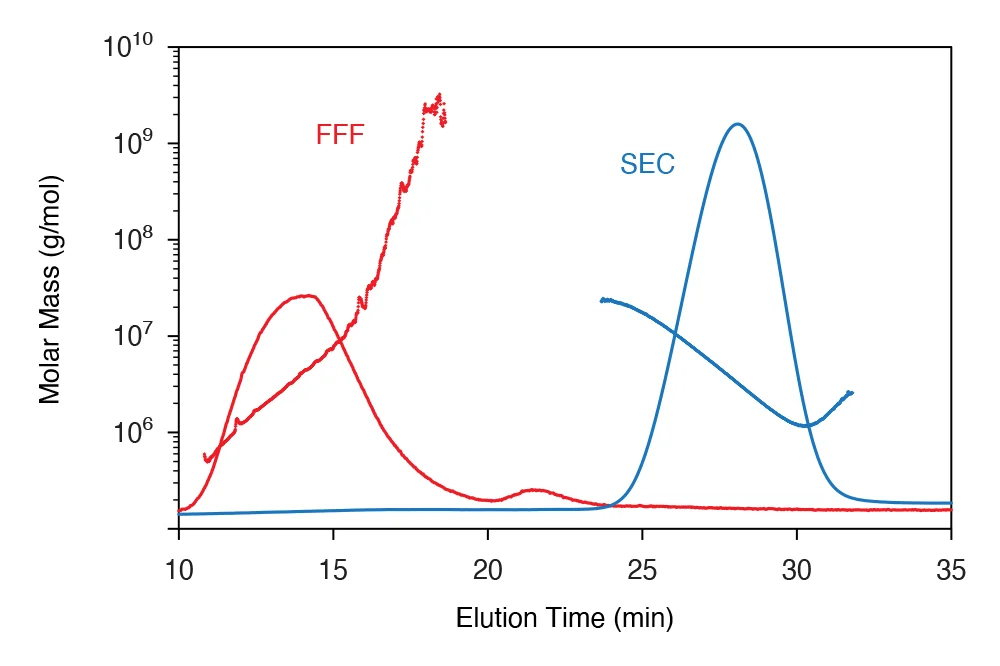

HMW Polymers or Complexes
Viral Vectors
Flexible Channel Selection
Fixed Height Channel
- Robust channel for faster assembly
- Ideal for routine and QC applications
- Temperature regulation module from ambient up to 50°C (all Eclipse channels)
| Channel | Benefits |
|---|---|
| Analytical Short | Rapid nano/microgram separation |
| Analytical Long | Nano/microgram separations |
| Dispersion Inlet | For aggregation-prone samples |
| Semi-Prep | Milligram separations coupled to a fraction collector |
| Mobility EAF4 | Separation by size and charge |
